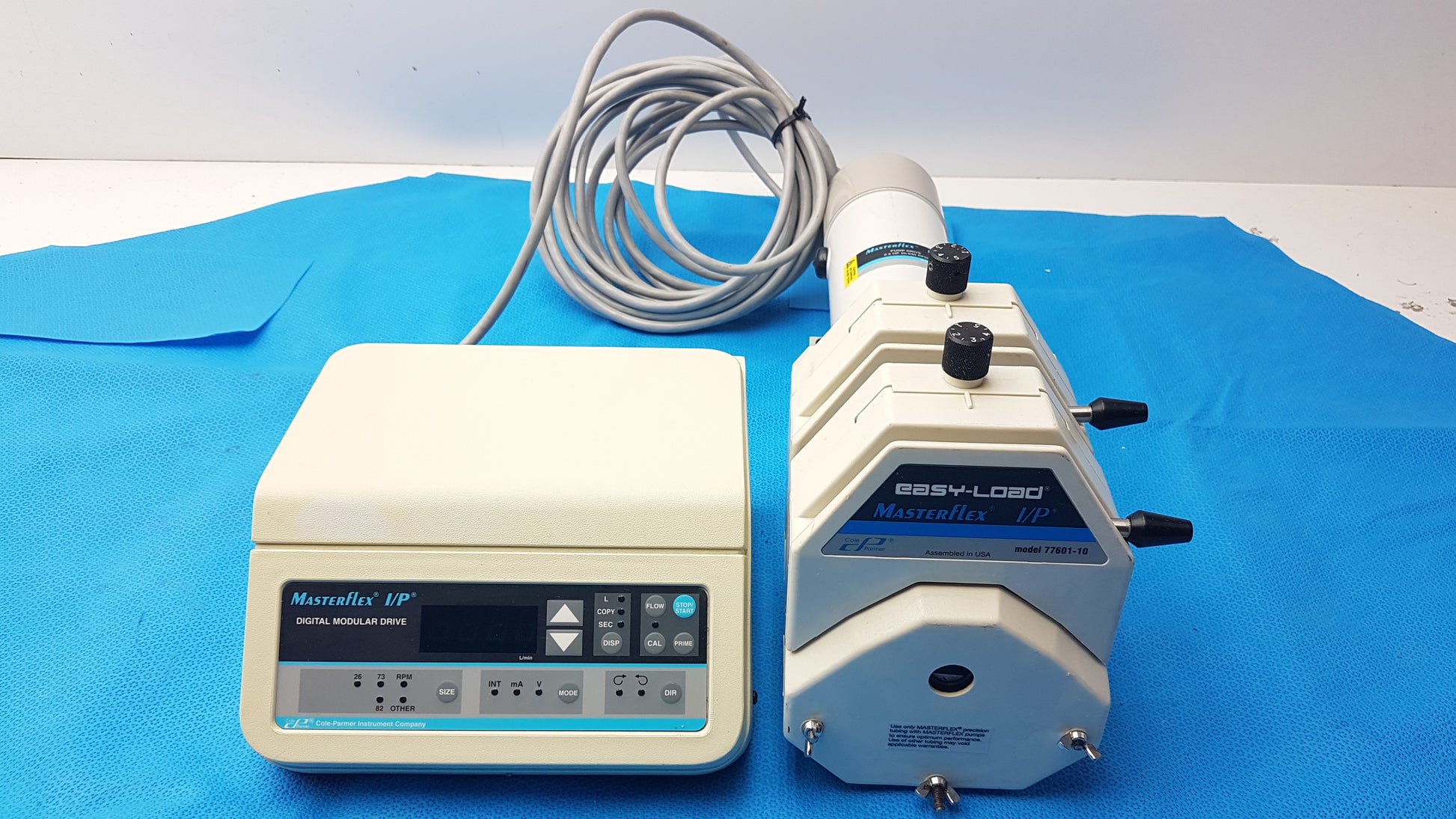

Cole-Parmer Masterflex I/P Digital Modular Drive Pump Controller With 77601-10 Pump

Description:

The Cole-Parmer Masterflex I/P Digital Modular Drive Pump Controller with the 77601-10 Easy-Load Pump Head is a high-performance, clinical and laboratory-grade peristaltic fluid transfer system. Designed with a modular architecture, this system separates the motor drive and the digital controller console, allowing operators to position the control module outside of hazardous environments or fume hoods for maximum operational safety. The attached Masterflex I/P 77601-10 Easy-Load pump head features an over-center cam design with automatic tubing retention, enabling rapid, tool-free tubing changes. This precise volumetric dispensing platform is heavily utilized in pharmaceutical manufacturing, chemical processing, biotechnology laboratories, and clinical fluid automation workflows.

Specifications:

• Manufacturer: Cole-Parmer

• Product Type: Digital Modular Peristaltic Pump System

• Series Class: I/P (Industrial/Process) Series

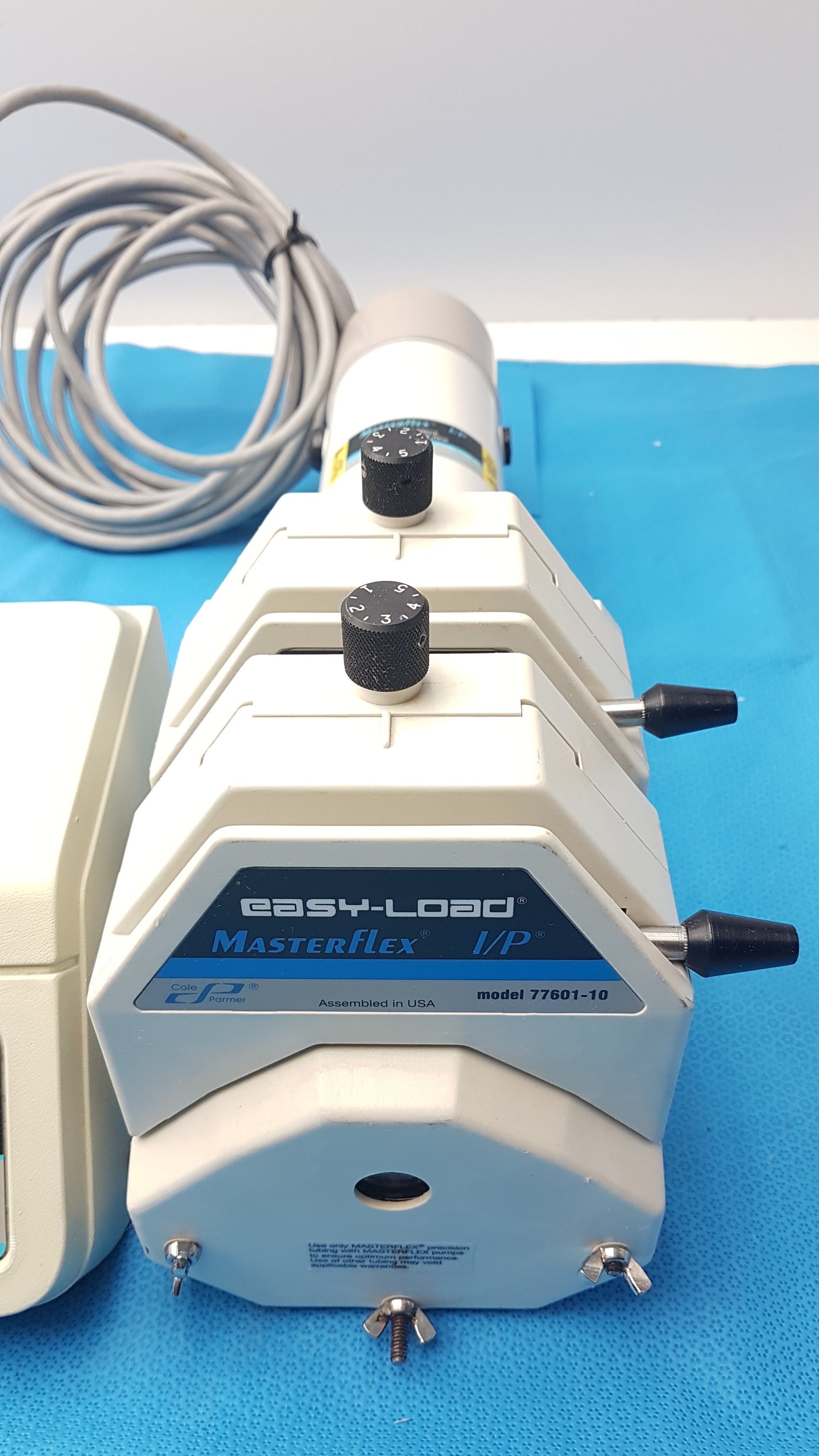

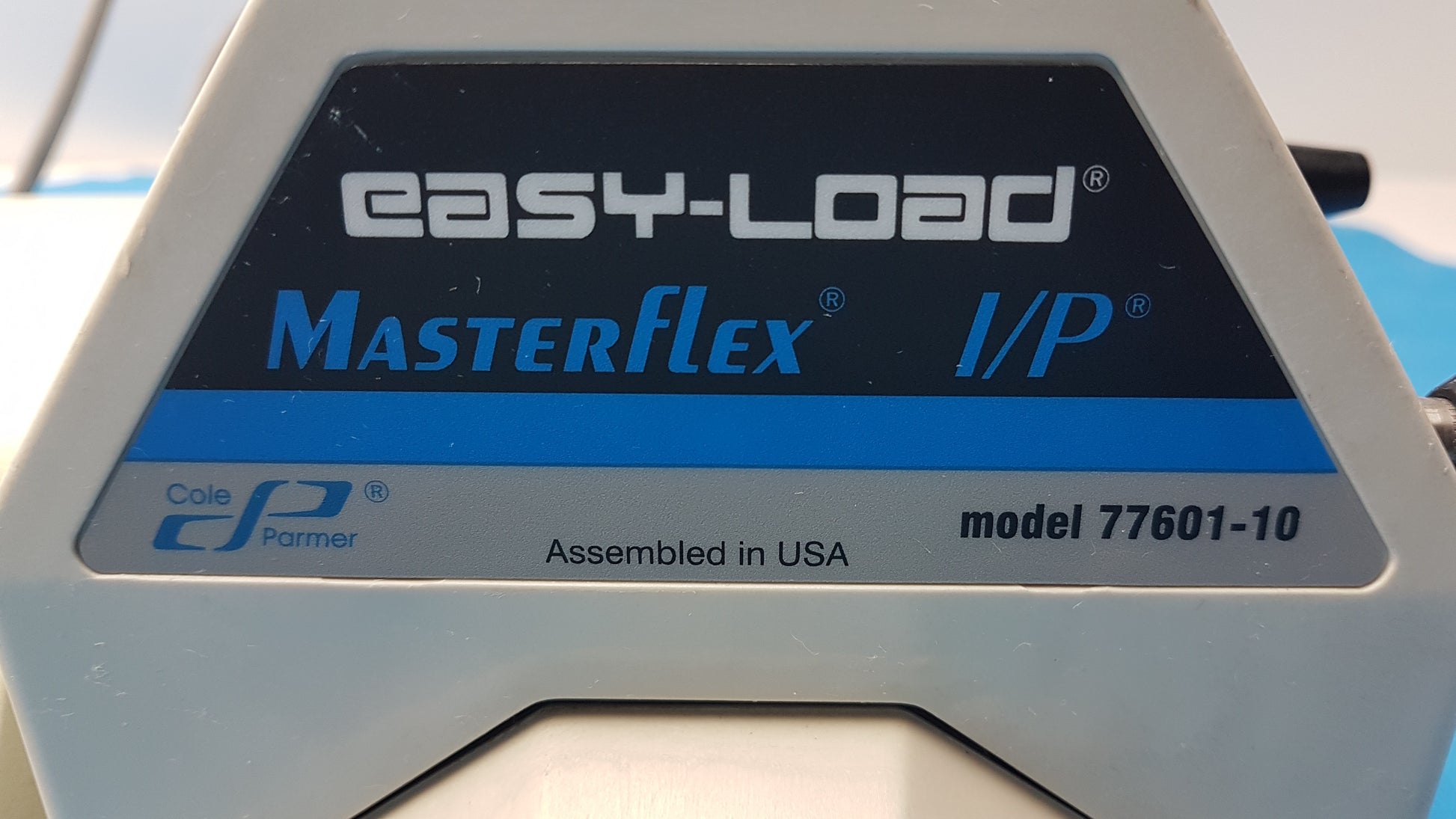

• Pump Head Model: 77601-10 (Easy-Load Series)

• Housing Material: Polyphenylene Sulfide (PPS) pump head housing with Cold-Rolled Steel (CRS) / Stainless Steel rotor assembly

• Max Flow Rate Capacity: Up to 13 Liters per Minute (LPM) / 13,000 mL/min (depending on drive RPM and tubing size)

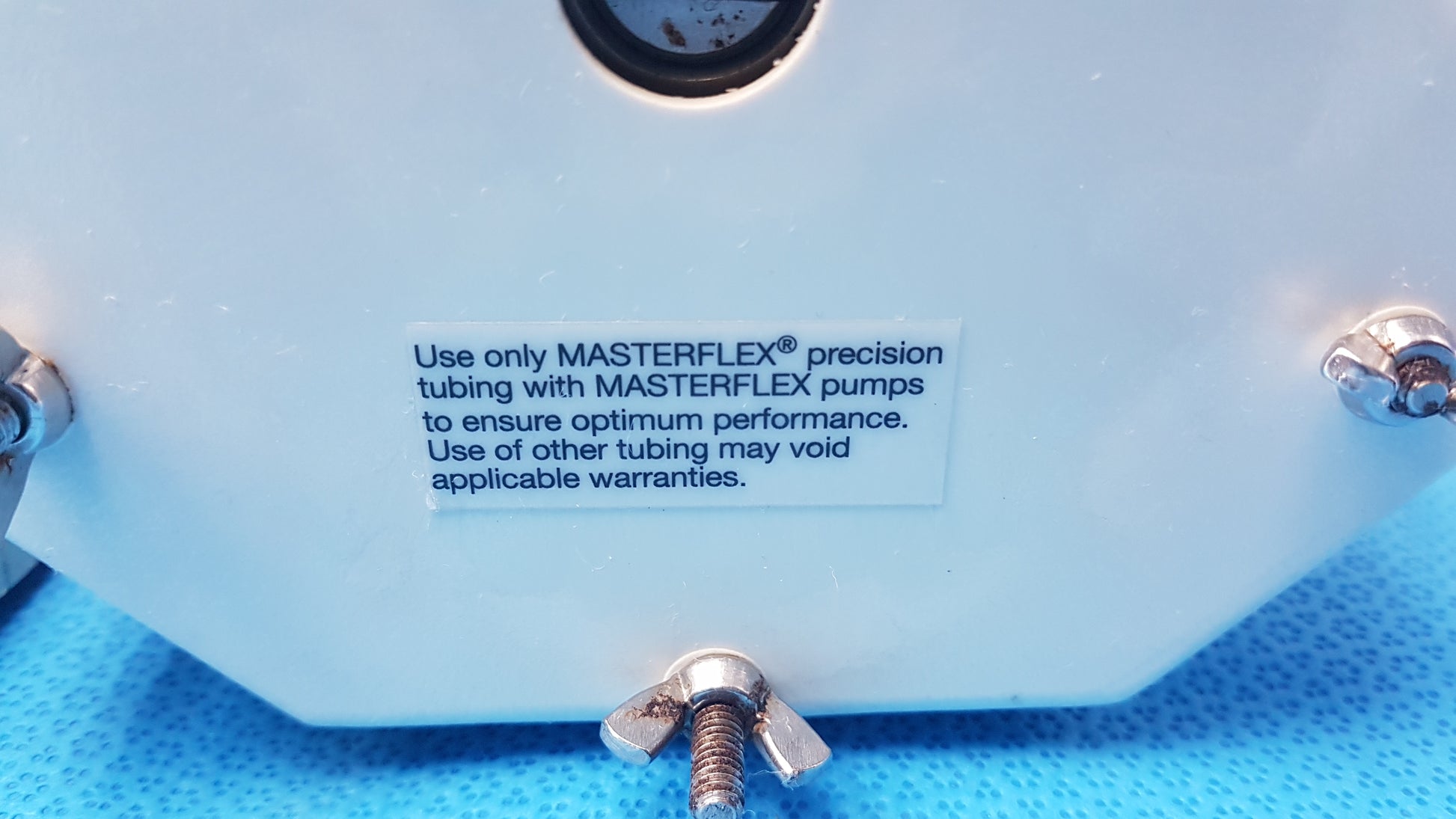

• Compatible Tubing Sizes: Standard Masterflex I/P Precision Tubing (I/P 26, I/P 73, and I/P 82)

• Dispensing Modes: Volume dispensing, time dispensing, copy cycles, and continuous batch running

• Speed Control Accuracy: Microprocessor-regulated precise digital speed tracking

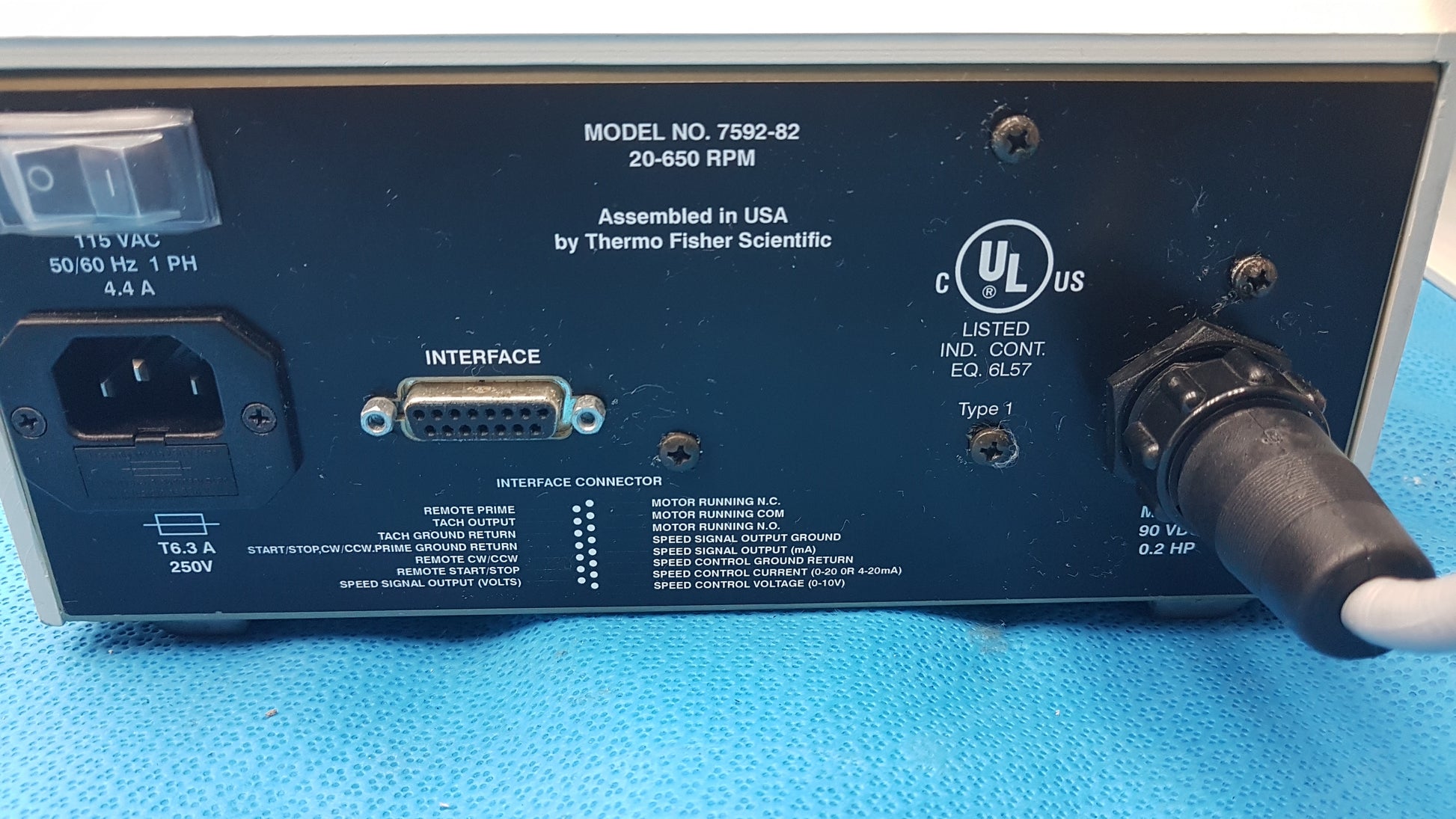

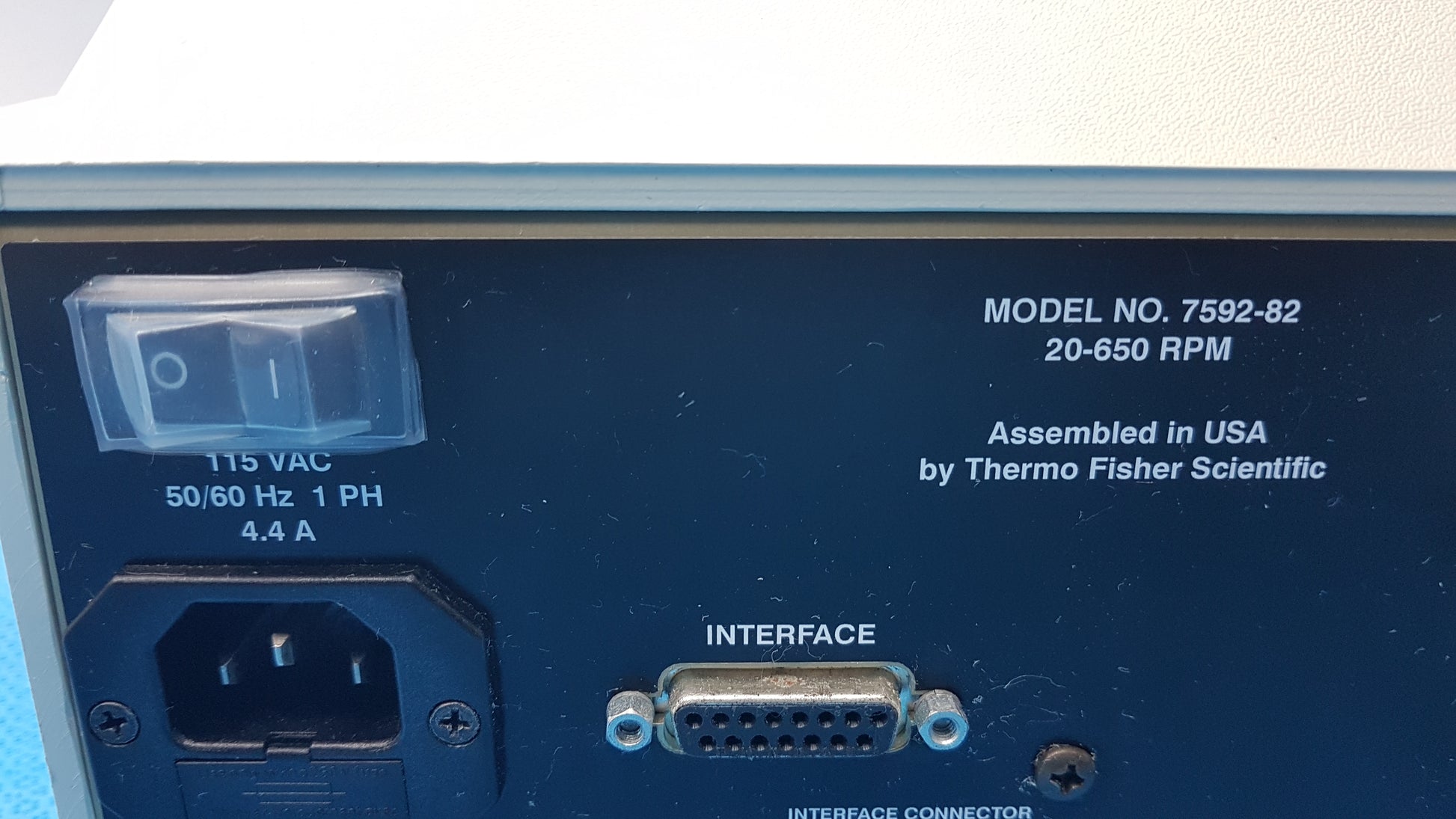

• Electrical Configuration: Standard AC multi-voltage compatible power input

Features:

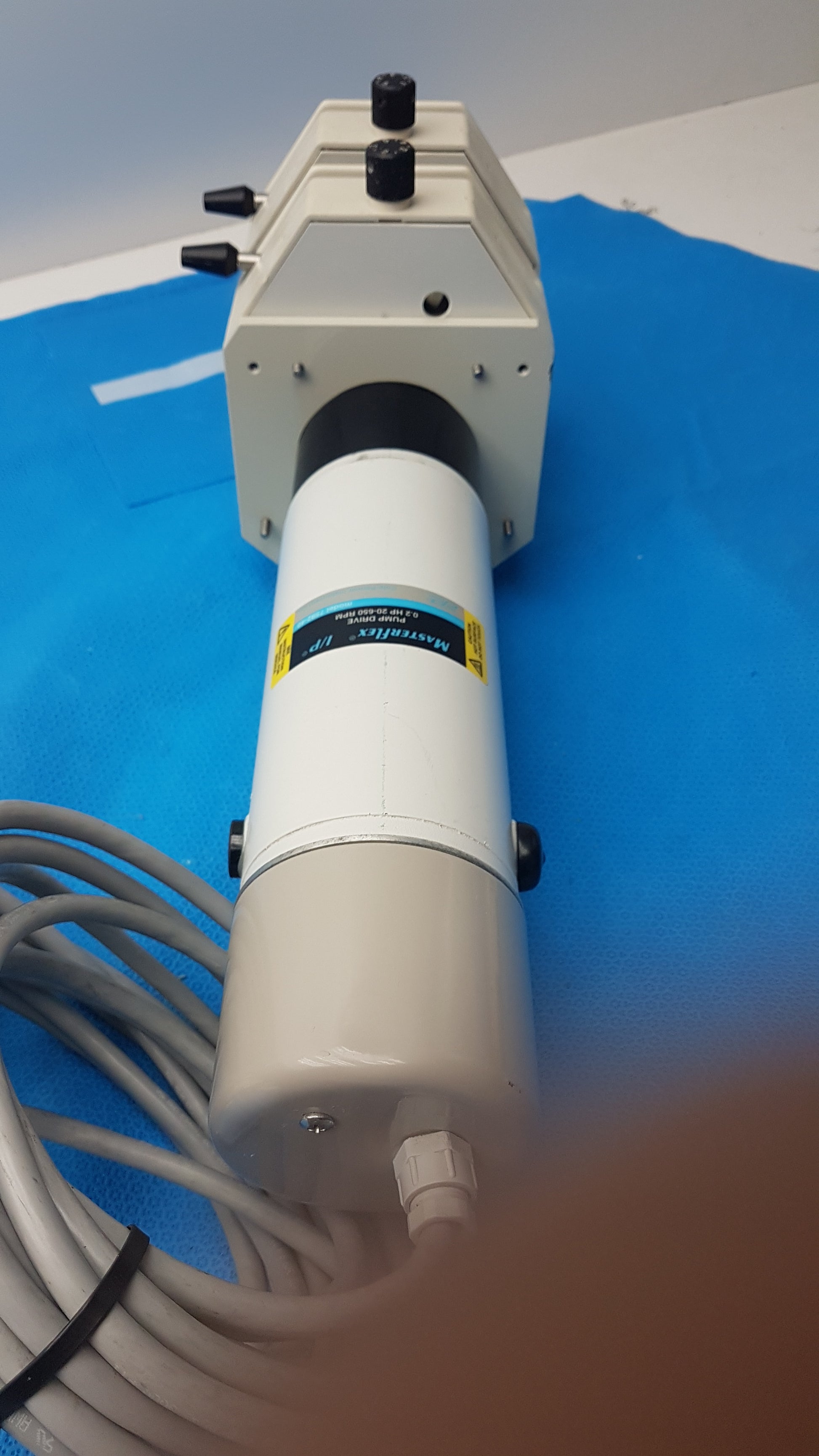

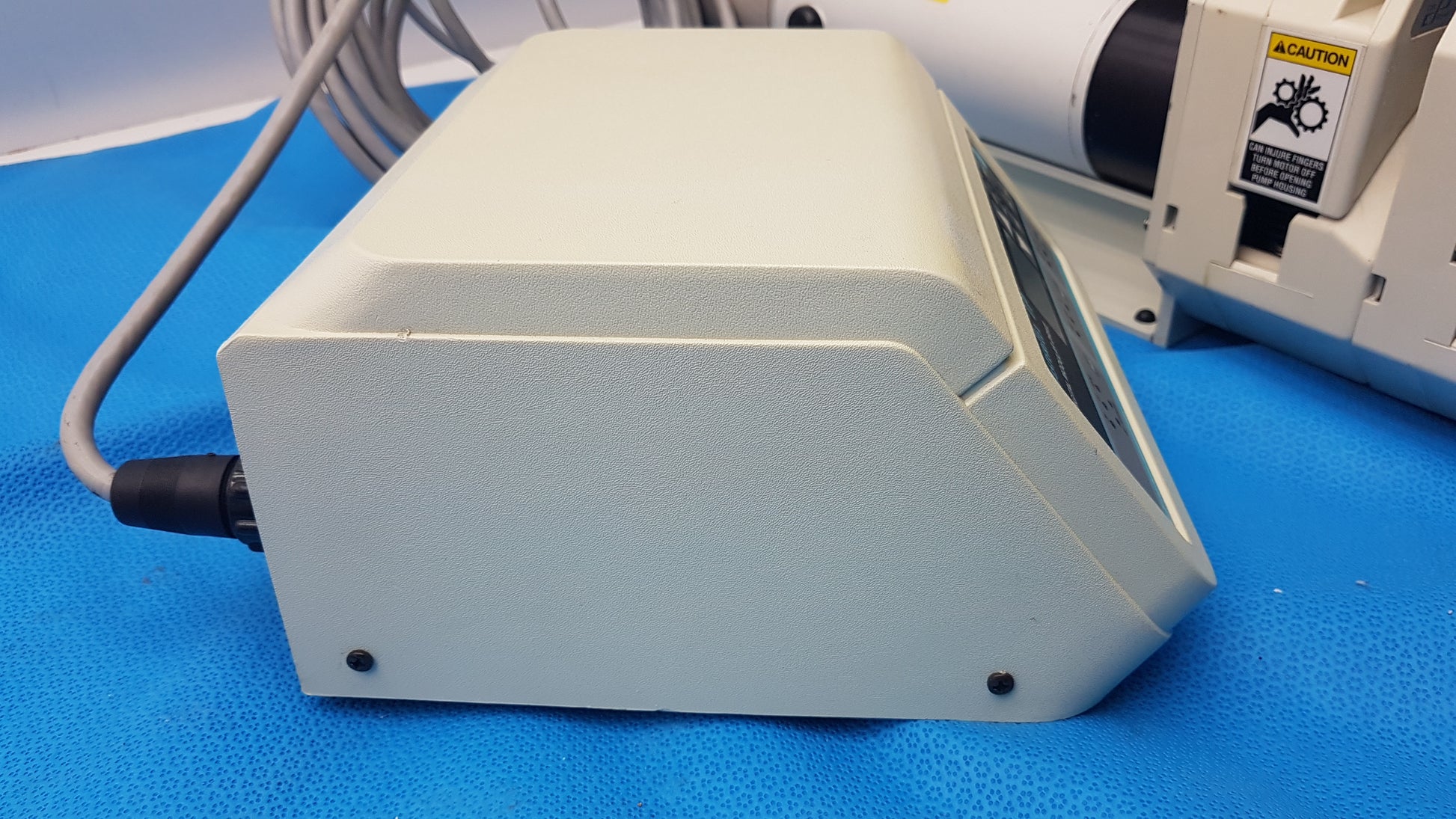

• Flexible Modular Component Design: System separation permits the heavy-duty drive motor to reside near fluid processes while the interactive control console sits safely at a clean benchtop interface

• High-Efficiency Easy-Load Lever System: Built with an over-center mechanical cam mechanism that opens wide for rapid loading and locks down automatically to secure the tubing line without manual tension adjustments

• Adjustable Fluid Line Occlusion: Features an adjustable squeeze dial on the pump head mechanism to calibrate roller pressure, optimizing suction performance and extending custom tubing lifespans

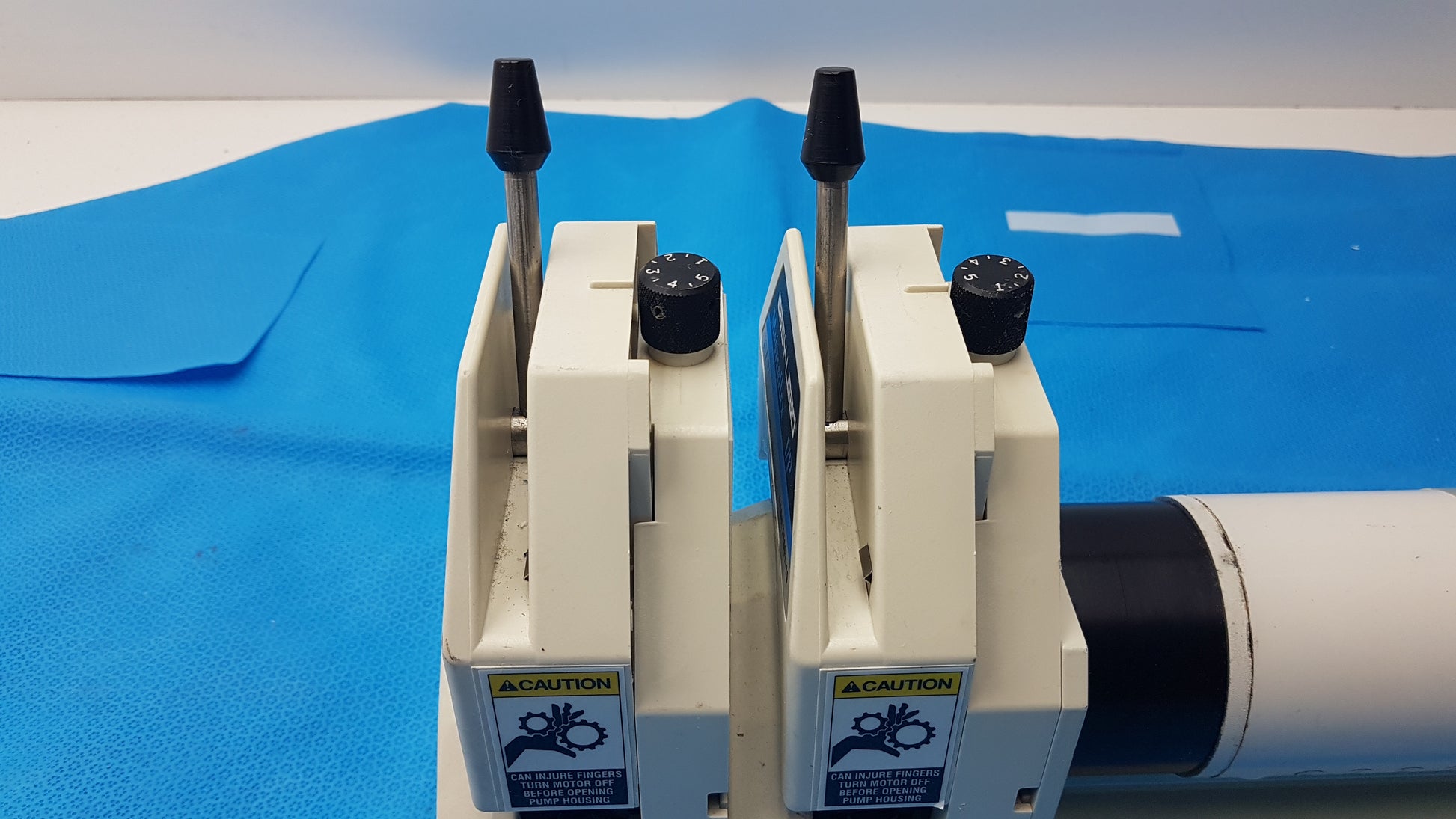

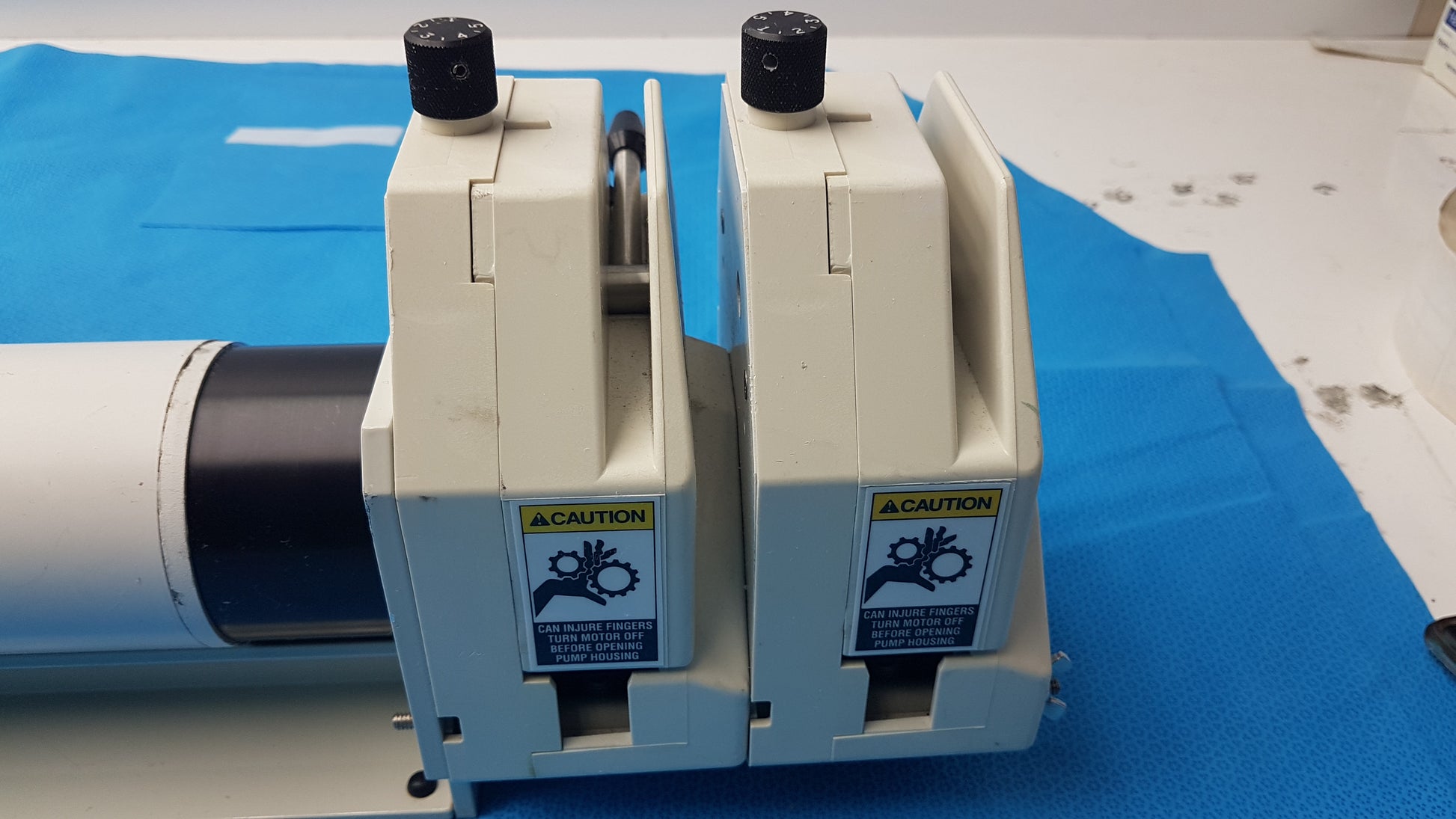

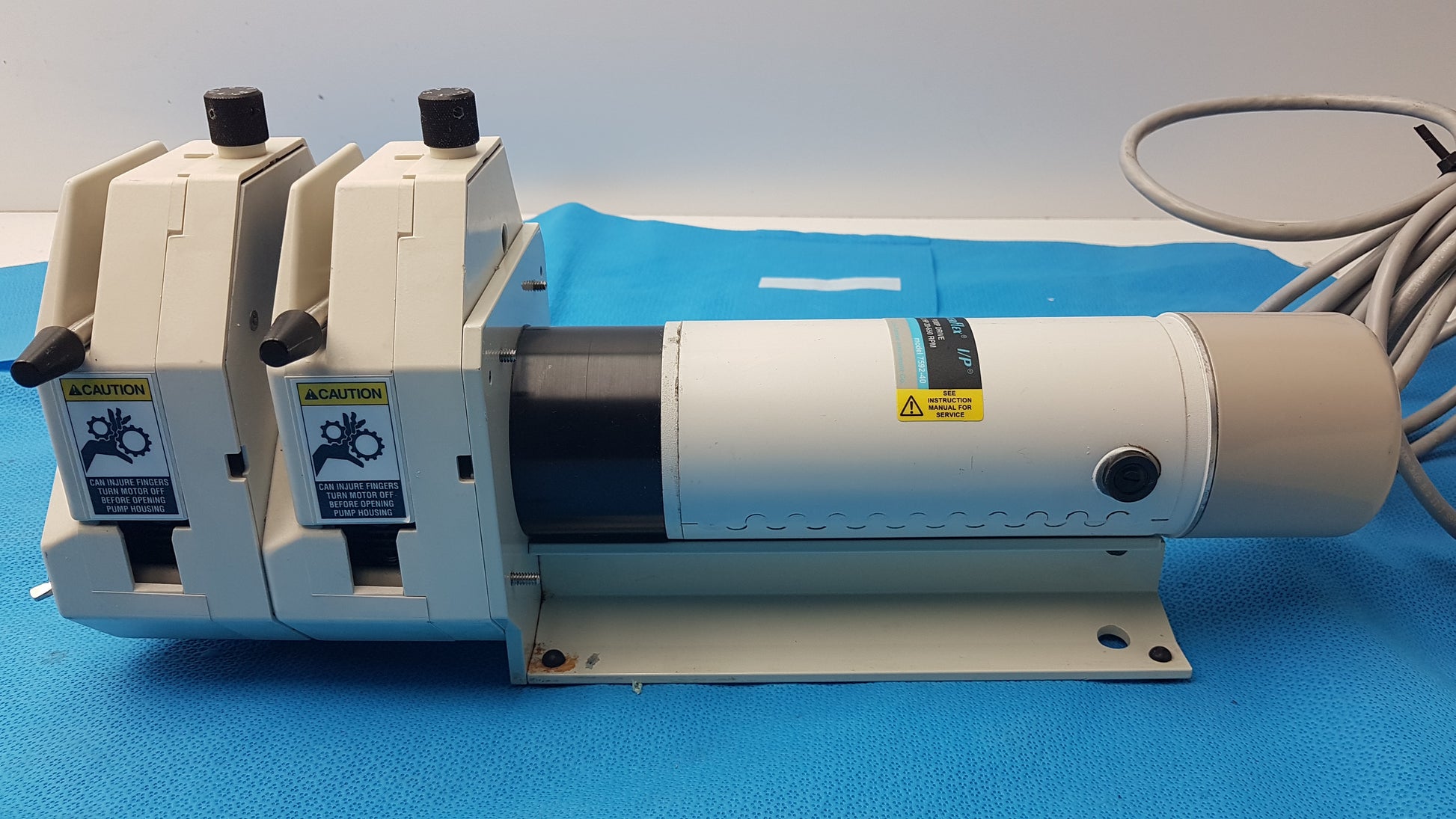

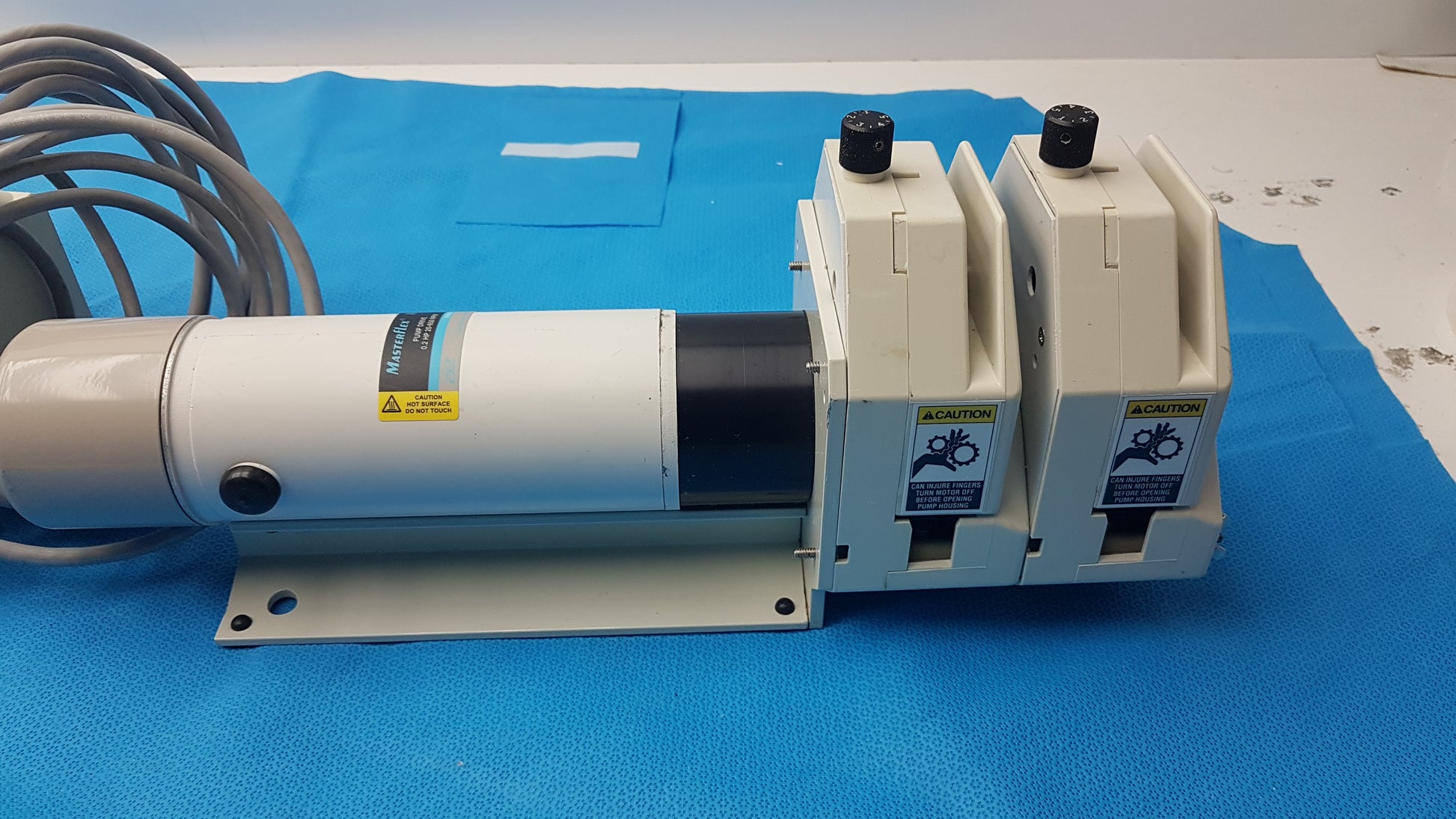

• Multichannel Stackable Hardware: Designed with a flat-profile housing capable of being physically stacked with a secondary pump head on a single drive shaft to configure dual-channel fluid workflows

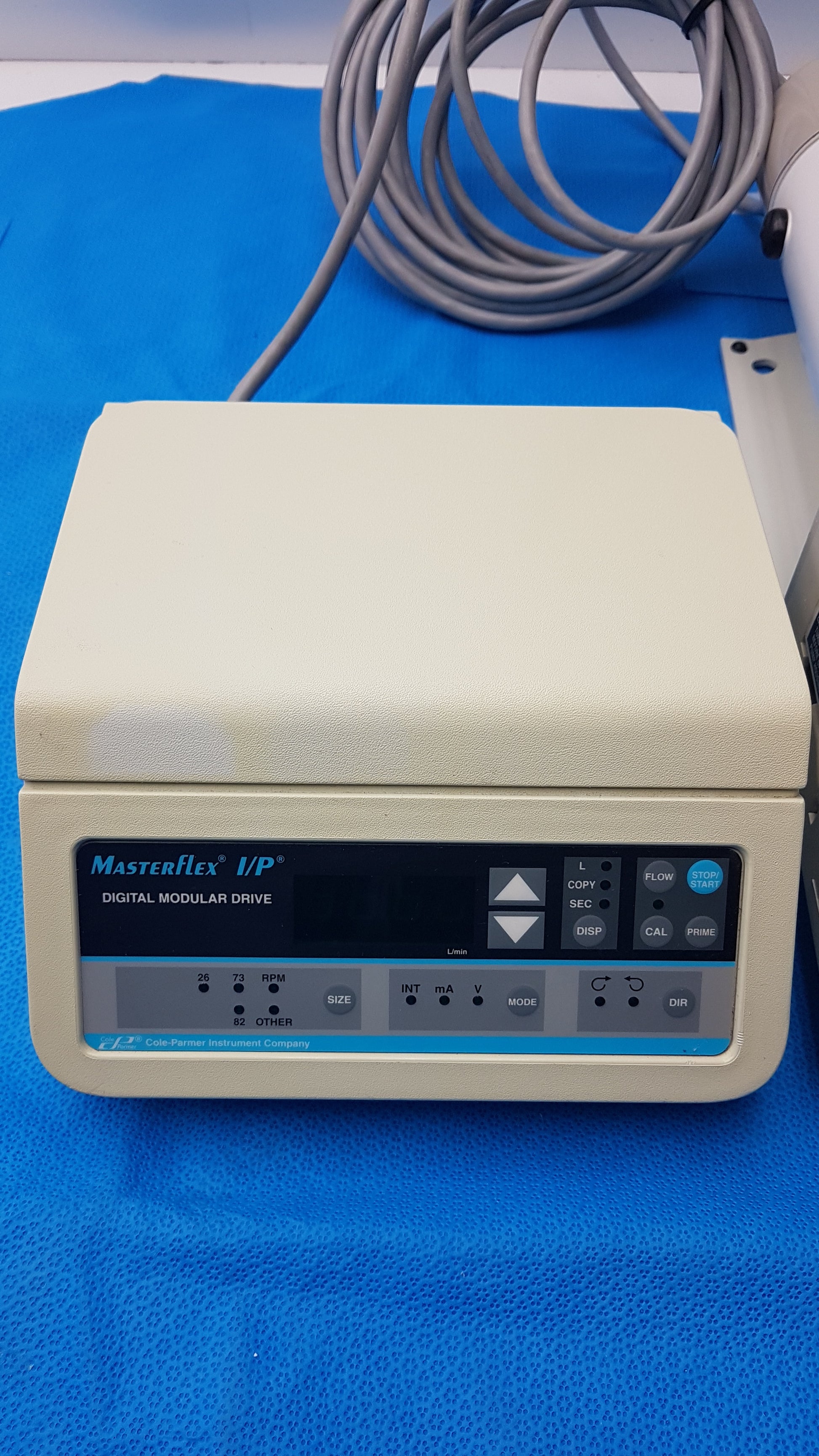

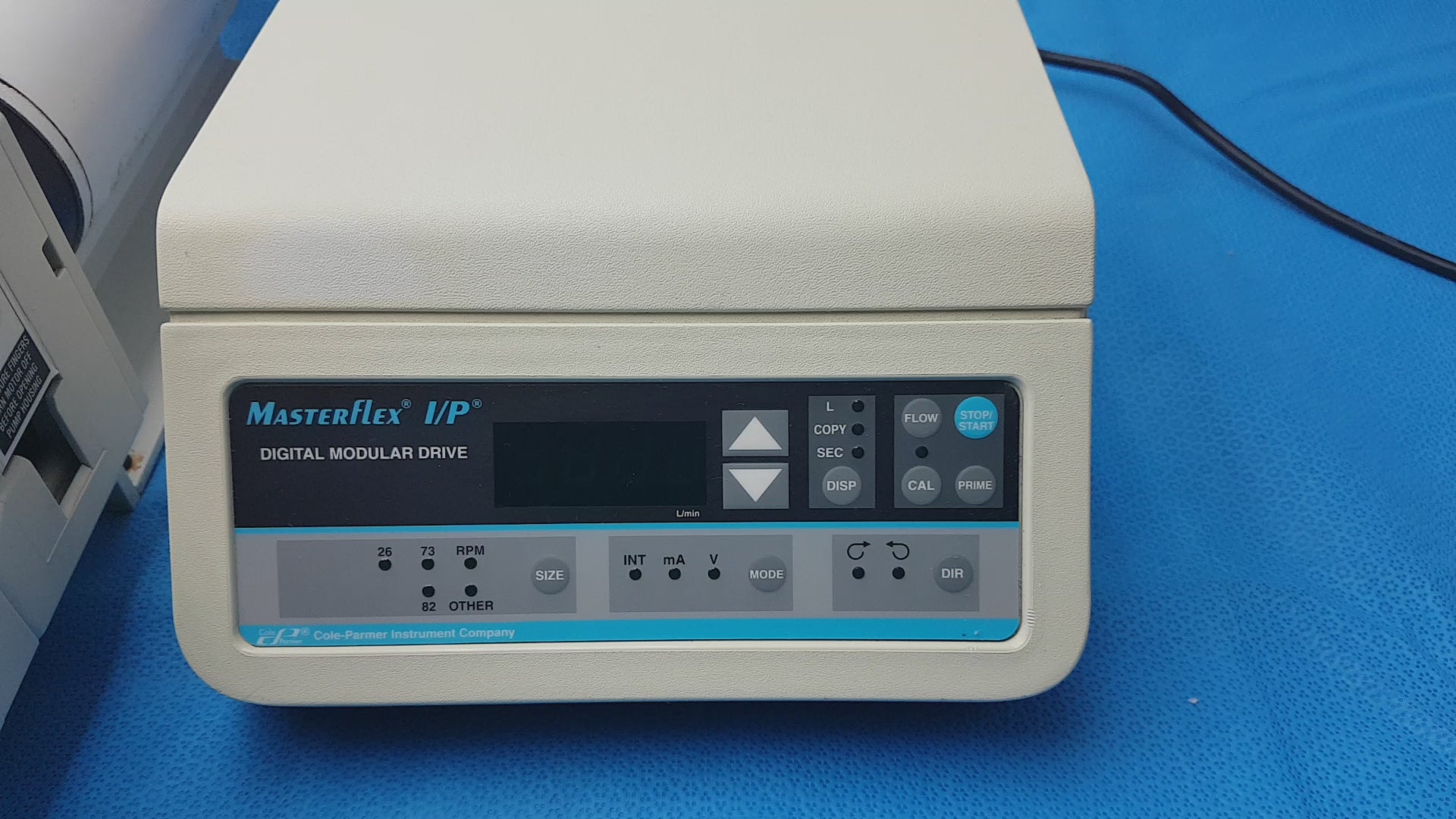

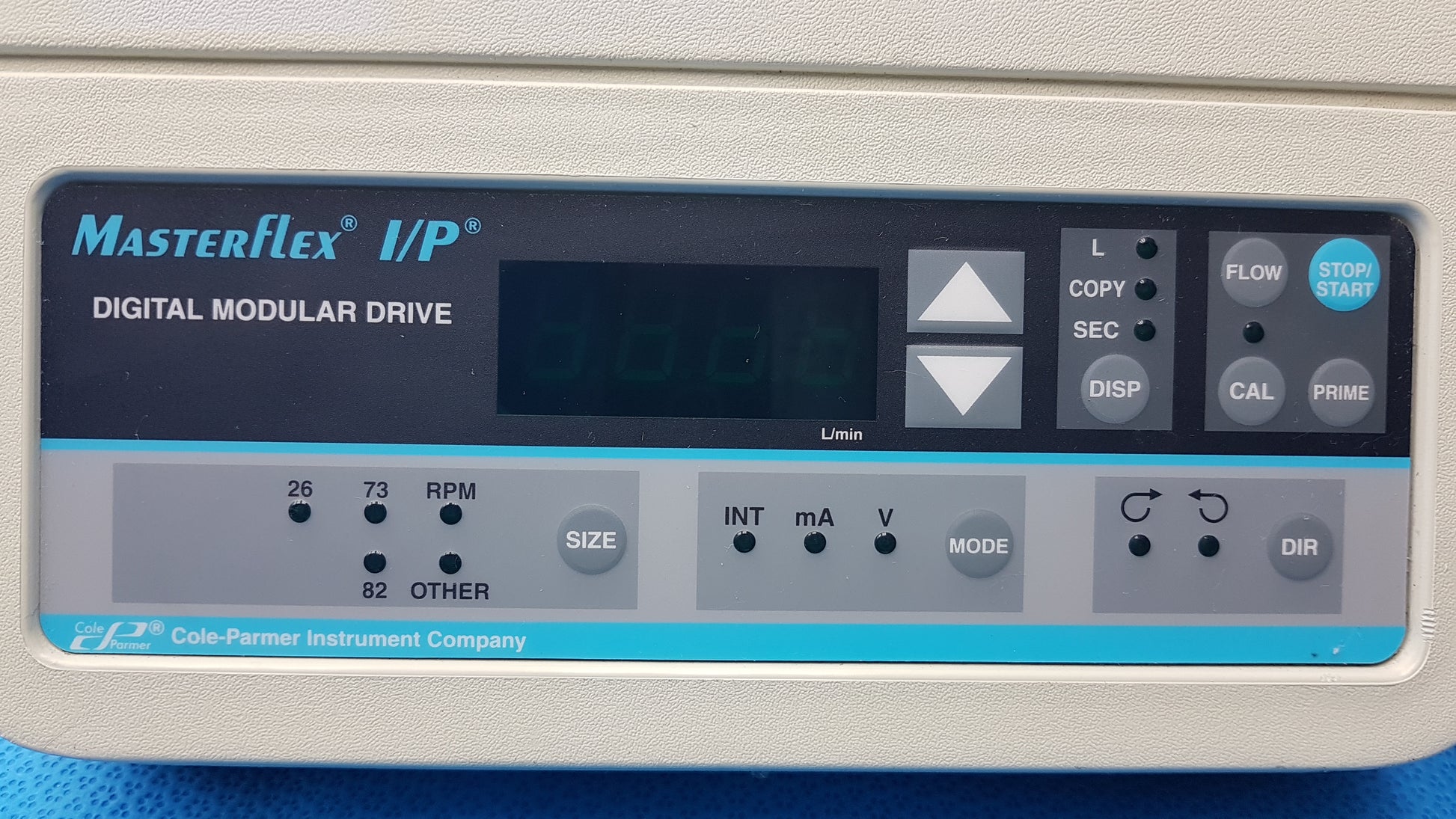

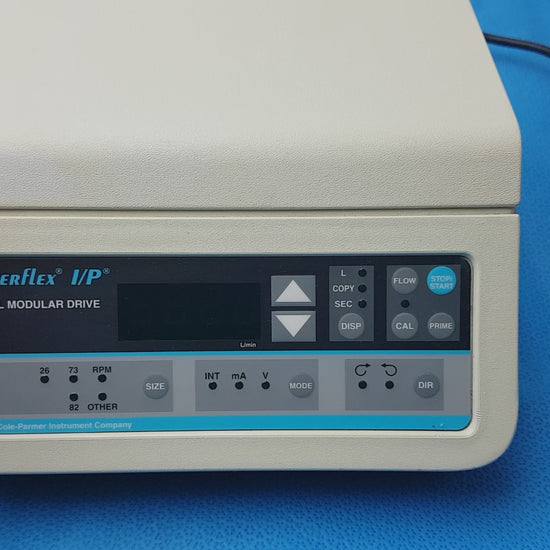

• Full Digital Dispensing Screen: Outfitted with an interactive graphic LCD console that provides straightforward calibration, target batch programming, fluid direction reversing, and real-time RPM tracking
